CNC Machining Cell for Die Casting Parts

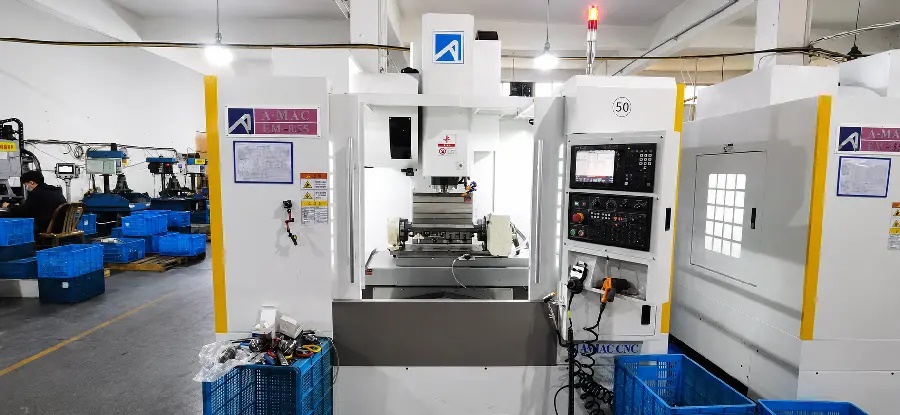

A CNC cell converts casting allowance into functional features. Its value is measured by whether a bore aligns with the mating shaft, a sealing face remains flat and threaded holes assemble without forcing the customer to sort parts. The machine shown here is one element of that result; fixture logic, cutting tools and inspection decisions complete the process.

Datum transfer from casting to machining

Raw castings have draft, parting lines and normal process variation. A fixture therefore needs locating points that are stable enough to establish the required machined relationship without over-constraining the part. If a cosmetic wall or thin rib is used as a hard clamp point, the setup can create distortion or marks. Huabo reviews the datum scheme against the assembly function before fixture release.

First-piece and in-process control

The first piece should confirm more than one easy dimension. It should cover the characteristics affected by fixture location, tool offset and program path. During the run, checks are assigned by risk: tool-wear dimensions may need periodic monitoring, while stable noncritical features can be sampled at a different frequency. When a result trends toward a limit, the reaction should happen before the lot is completed.

Preparing a quotation

Provide the casting material, 3D model, toleranced drawing, projected quantity, thread specifications, surface-finish symbols and inspection documentation expected. State whether machined surfaces will seal, locate, conduct heat or provide electrical grounding. Those functions influence tool choice, masking, cleanliness and packaging.
