Operator-Controlled CNC Machining Center

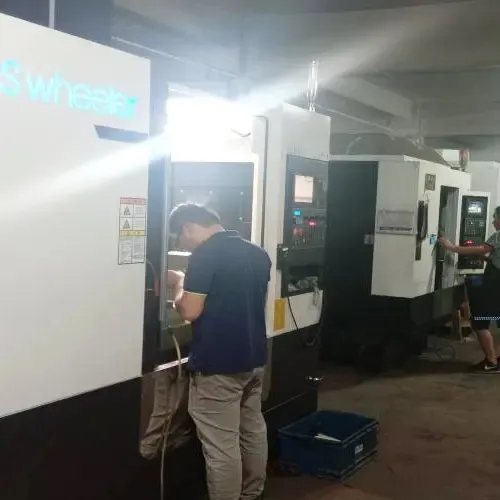

This image shows an operator working at an enclosed CNC machining center. Automation executes the programmed path, but the operator still controls the conditions that decide whether the result is acceptable: the correct program and fixture, clean locating points, secure loading, tool condition and response to the first measurement.

Setup verification before cycle start

Part number and drawing revision are confirmed before the setup package is released. Fixture identity, jaw or clamp position, program version and tool list should agree. The operator removes chips from locators and checks that the raw casting sits without rocking. This is particularly important for die cast parts because draft and normal casting variation can make an apparently convenient surface unreliable as a datum.

The first piece is a process test

A first-off component checks the combined effect of machine, fixture, program, tools and operator loading. Huabo selects dimensions that reveal setup errors rather than measuring only easy features. A bore position can expose datum shift; a face dimension can reveal an offset problem; a thread check can identify an incorrect tool or depth setting.

What to specify for stable machining

Mark the functional datums and identify critical relationships, not only isolated tolerances. Include thread class, roughness, flatness, cleanliness and any inspection report required. If the component is thin-walled or pressure-tight, share that function because clamping and chip removal may need additional controls.
