Huabo secondary press and trimming equipment for die cast components

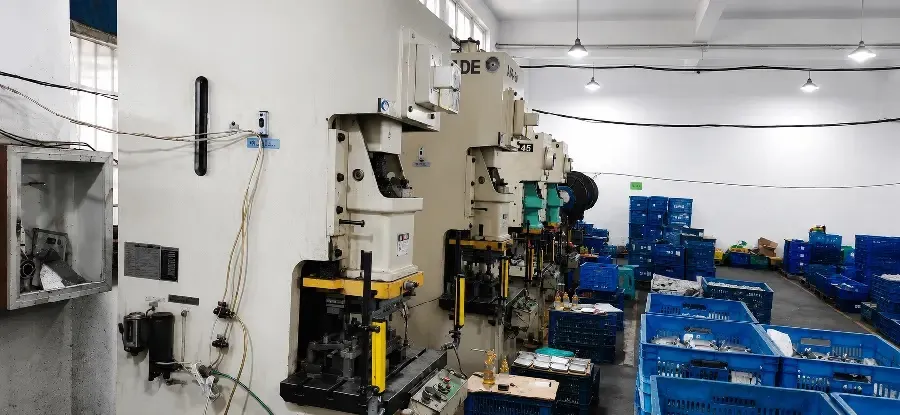

The machines in this photograph are press equipment used for secondary processing, not dimensional inspection. They can support operations such as trimming, punching or controlled separation of excess casting material when a dedicated tool is appropriate. Correctly naming the process matters because a buyer needs to understand what changes the part and what only measures it.

When a press operation is useful

A press can remove a runner or open a defined feature with consistent motion and support. The casting and trim tool must be reviewed together: a thin frame needs different support from a compact housing, and a gate close to a cosmetic face requires a different acceptance limit from one hidden inside an assembly. The aim is not a perfectly smooth edge directly from the press; it is a stable cut that leaves predictable material for final deburring.

Process variable	Failure if uncontrolled	Production check
Part orientation	Wrong feature removed or casting loaded unevenly	Positive locating and clear work instruction
Tool edge condition	Torn gate, heavy burr or cracked local wall	Visual standard and maintenance trigger
Support location	Distortion around bosses or open sections	Fixture contact review during sample approval
Stroke or stop setting	Witness mark or incomplete separation	Verified setup and first-off part

Linking trimming to later operations

After pressing, the component is checked for residual burrs, deformation and loose fragments. Parts going to CNC machining must sit correctly in the fixture; a remaining gate can change the locating position. Parts going to painting or powder coating need smooth, clean edges because sharp burrs can affect coverage and handling safety.

Drawing notes that remove ambiguity

State the allowed gate vestige, edge-break range, prohibited burr locations and any surface that must remain free of press marks. If the drawing does not communicate appearance well, provide a marked photograph or approved limit sample. This lets Huabo quote tooling and manual finishing at the correct level.
