Trimming Press Workstation for Die Cast Parts

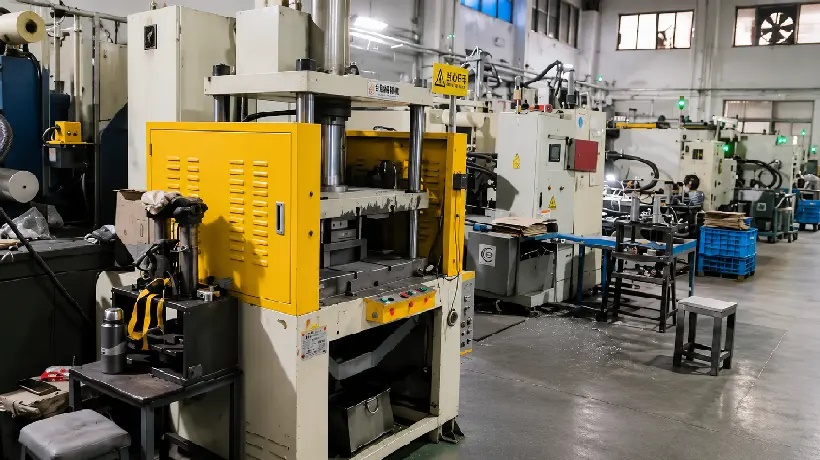

The guarded press shown in this production area is used for controlled secondary work rather than dimensional inspection. After casting, parts may retain runners, overflows or defined trim features that must be removed without bending a thin wall or damaging the functional body. A dedicated trimming tool can make this operation more repeatable than uncontrolled manual removal.

What a trimming operation must control

The trim line begins with the die casting and tool design. Gates and overflows need enough access for removal while remaining away from surfaces where marks are unacceptable. The trim fixture supports the casting at suitable points, and press travel is set so the unwanted material separates without crushing the part.

What happens after the press

Press trimming does not automatically create a shipment-ready edge. The part may still require localized deburring, visual inspection and cleaning. Areas near sealing faces, cable openings or fluid passages receive particular attention because a loose chip can cause an assembly or cleanliness failure. If the part will be painted or powder coated, sharp edges and retained debris can also affect finish quality.

Defining acceptance in the RFQ

Buyers should mark allowed gate vestige, edge-break requirements, burr restrictions and cosmetic zones on the drawing or an approved sample. State whether loose particles are prohibited and whether a magnified or tactile edge check is required. Clear acceptance language avoids treating every edge as identical.
