CNC Machining Line and Work-in-Process Flow

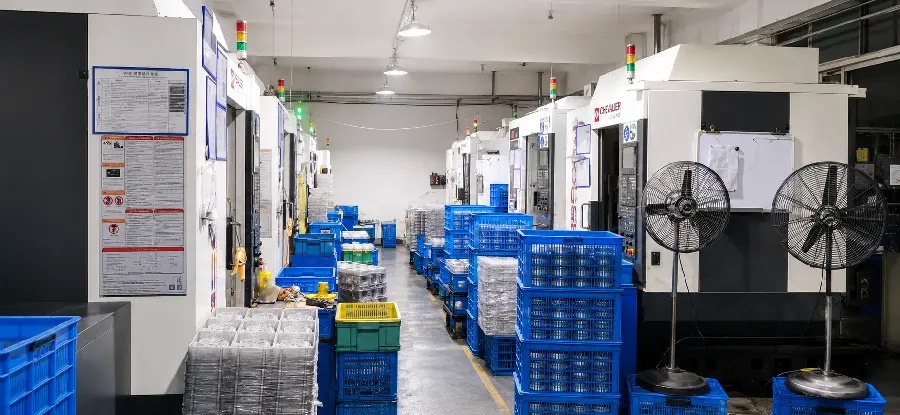

The photograph shows a row of enclosed machining centers with blue work-in-process containers placed beside each operation. For a buyer, the useful point is not simply the number of machines. It is whether castings can move from rough input to completed features without losing batch identity or allowing finished surfaces to rub against one another.

Planning the route for a machined casting

A typical die cast housing may require facing, drilling, tapping, boring and deburring. These operations can run in one setup or several, depending on datum relationships and tool access. Huabo reviews the route before production so that the first operation creates or confirms a stable reference for later features. Where two bores or faces must remain related, the fixture and inspection method are planned together.

What repeat production requires

Once samples are approved, the program alone is not enough to guarantee repeatability. The shop needs the same fixture references, controlled tool replacement, a reaction plan for out-of-tolerance results and records tied to the production lot. A blue bin should represent a known status, not merely convenient storage. This is particularly important when several part numbers use similar raw castings.

RFQ details that affect machining cost

Buyers should identify datum structure, tolerances, thread class, surface roughness, flatness, leak-test needs and expected inspection reporting. Annual volume and order lot size affect fixture investment and cycle planning. A drawing that distinguishes functional dimensions from general dimensions allows the process and quotation to focus control where it matters.
