CNC Machining Cell and Fixture Setup

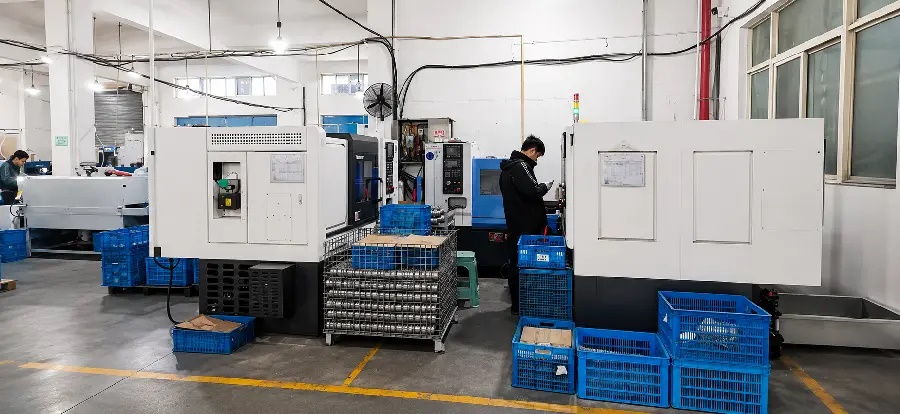

The CNC cell in this photograph is used with part-specific fixtures and cutting tools. For die cast components, fixture design deserves early attention because the raw shape includes draft, parting lines and allowance that do not exist on a bar-machined blank. A good fixture holds the part repeatably while leaving tools access to the features that matter.

Fixture decisions made from assembly function

The primary locating face should represent how the component works in the customer assembly whenever practical. Secondary and tertiary locators control movement without forcing the casting into an unnatural shape. Clamps are placed over supported regions and kept away from thin walls, heat-sink fins and appearance surfaces.

Proving repeatability

Sample approval should include repeated loading, not only several measurements without removing the part. This separates machine repeatability from fixture loading variation. If the part needs more than one setup, intermediate datums and protected surfaces are documented so later operations do not destroy the relationship established earlier.

Inputs needed before fixture design

Huabo needs the 3D model, datum scheme, tolerances, annual quantity and expected service life of the project. Highlight sealing, bearing, heat-transfer and cosmetic functions. Also state whether the fixture must support inspection or leak testing after machining; combining functional references can reduce uncertainty between operations.
