Enclosed Production Cells for Die Cast Components

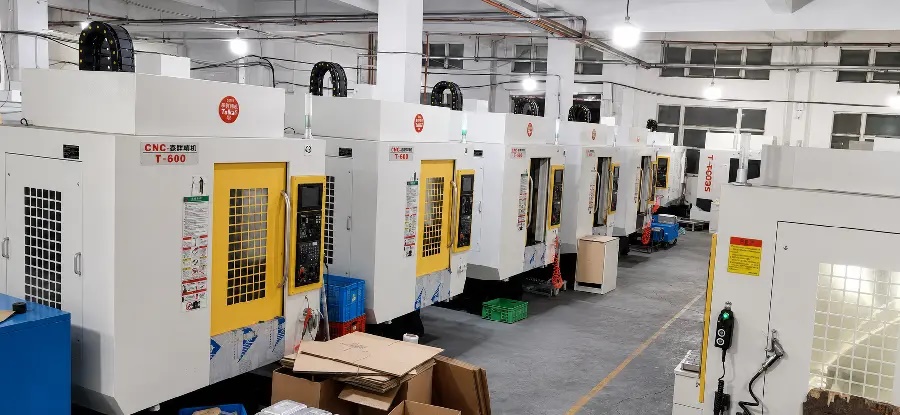

This workshop row shows enclosed production cells arranged for repeated secondary operations on cast components. The photograph does not by itself prove a tolerance or cycle time; those must come from the drawing, fixture and validation records. It does show how multiple cells can be organized with defined loading access and nearby part staging.

Matching the cell to the feature

Die cast parts often leave the casting machine with features that still require controlled machining or trimming. A housing may need a flat sealing face, a cover may need drilled holes, and a bracket may need a machined mounting pad. Huabo selects the operation sequence from feature relationships rather than assigning a part to a machine only because it fits inside.

Process questions reviewed before release

• Which cast surface or machined feature establishes the first datum?
• Can all related holes be completed in one clamping to reduce stack-up?
• Will clamping distort a thin wall, boss or open frame?
• Where will chips and burrs collect, and how will they be removed?
• Which dimensions require first-off, patrol or final inspection?

Capacity is more than machine count

A line with several cells is useful only when the routing, fixture availability, operator training and inspection response can support the promised volume. During quotation, cycle assumptions should account for loading, tool changes, checks and handling, not only cutting time. For repeat orders, stored programs and fixture references must remain tied to the current drawing revision.
