Press, Drilling and Tapping Equipment - Cixi Huabo Machinery Co., Ltd

Detailed Description

Huabo precision press and intelligent drilling tapping equipment

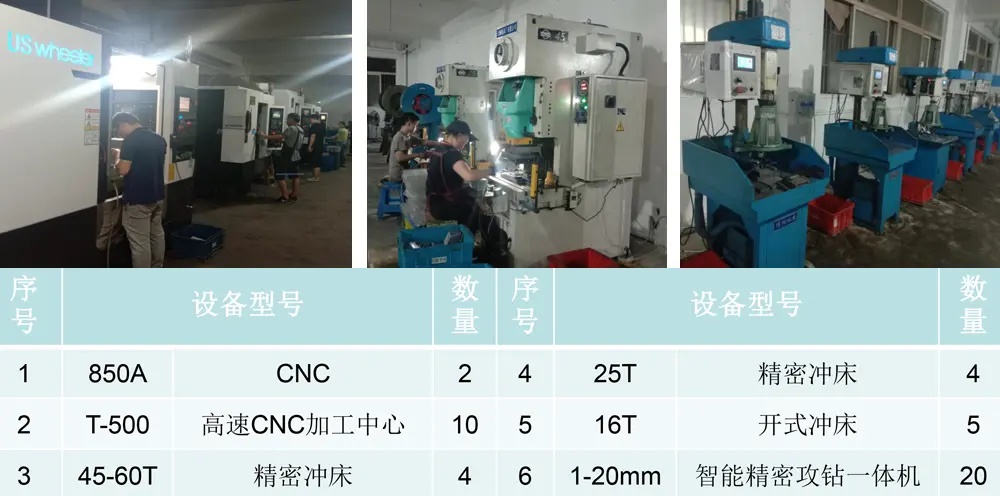

Huabo's secondary equipment list includes four 45-60T precision presses, four 25T precision presses, five 16T open presses and twenty intelligent drilling-tapping machines covering listed 1-20 mm work. These resources support repeat operations after casting, but each feature still requires a suitable fixture, tool and acceptance method.

Press capacity for controlled trim operations

Press group	Quantity	Process consideration
45-60T precision press	4	Tool force, support and stroke verified for the component
25T precision press	4	Smaller trimming/punching operations with controlled setup
16T open press	5	Compatible secondary work where access and guarding are appropriate

Press tonnage is not selected from part size alone. Huabo considers required force, trim perimeter, tool design and the risk of distorting thin sections. The first-off part is checked for gate vestige, burr, cracks and dimensional effect around the supported area.

Dedicated drilling and tapping

Twenty listed intelligent drilling-tapping machines can support repetitive holes and threads when the feature relationship suits a dedicated fixture. The 1-20 mm listing is an equipment range, not a promise that every diameter, depth or alloy can use the same tool strategy. Thread class, engagement, blind-hole depth and chip evacuation must be reviewed.

Feature risk	Control
Hole position	Fixture tied to drawing datum and periodic location check
Thread depth/class	Correct tap, depth setting and specified thread gauge
Broken tool or chip	Tool monitoring, cleaning and visual/reaction check
Burr at entry/exit	Defined edge requirement and deburring step

Information needed for process choice

Provide hole pattern tolerances, thread standard, edge requirements, annual quantity and material. If several holes must remain tightly related, CNC machining in one setup may be more appropriate than separate dedicated operations. Huabo compares total risk and cost rather than assigning a process only by equipment availability.
