Material and Dimensional Inspection Workflow

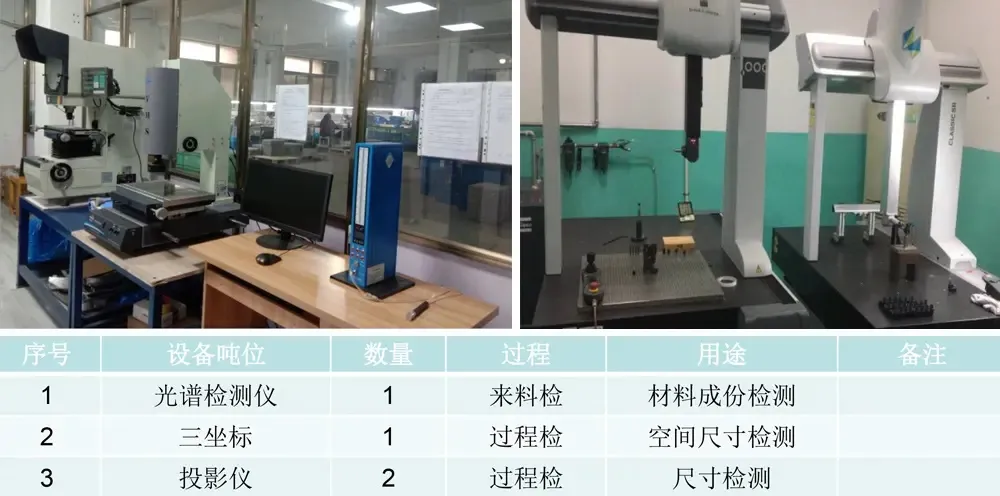

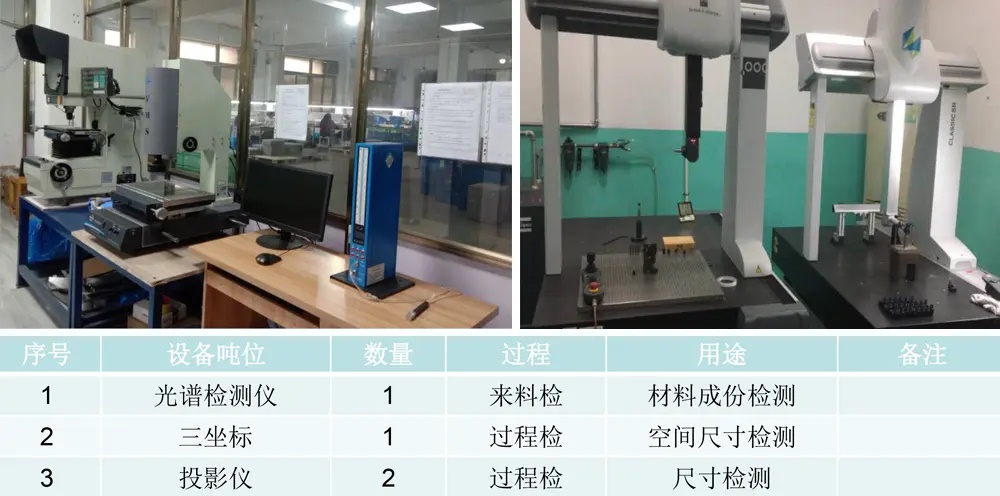

This inspection room includes a spectrometer, CMM and optical projectors. The important capability is the workflow connecting those instruments to material lots, machine setups and shipment release. A measurement without part identity, drawing revision or reaction criteria does not provide effective process control.

Inspection route from material to shipment

1. Incoming or alloy verification: confirm specified material using the planned certificate and spectrometer controls.
2. Tool trial/first article: measure drawing characteristics needed to approve the casting and machining route.
3. First-off setup: verify dimensions affected by fixture, program and tool offsets before releasing a batch.
4. In-process monitoring: check wear-sensitive or high-risk characteristics at defined intervals.
5. Final release: confirm the lot has completed required operations, checks and records.

Choosing the measurement method

Reaction to a result outside tolerance

The affected quantity is contained from the last known acceptable check. The team reviews measurement method, fixture, tool wear, casting variation and program/offset changes before disposition. Rework, use-as-is or scrap decisions follow authorization; the original result is not erased by a later adjustment.

Buyer requirements to agree before production

Identify critical characteristics, sampling level, first-article format, material standard, record retention and whether raw data is needed. For capability studies, define the feature, sample conditions and acceptance index instead of requesting a generic 鈥淐pk report.鈥?/p>

See dimensional inspection capability, quality control process and inspection equipment list.
